Due to coronavirus pandemic, mask are sold out. It’s time to make your own face mask. DIY face mask is easy,  sewing beginner can do it!  This tutorial given is to make a 2-layers olson fabric face mask with filter pocket, you can insert face mask filters into the mask for better protection. Let’s follow step-by-step guide, and start to make your fabric face mask at home. (Be noted: if you will go to crowded place and high-risk place (e.g. hospital), it is recommended to wear surgical mask, rather than fabric face mask).

How to Sew an Olson Face Mask?

Before start to sew a mask, you need a mask template and prepare following materials and tools.

Get Free Mask Template

Different sizes of olson mask pattern are available now! Download your size of mask template and start the sewing project. Following scales of each mask pattern are  for reference only. Please feel free to adjust the scale to fit your face shape.

Note: Before printing out, please follow the printing instructions to ensure the scale you print is correct.

Download free olson mask pattern pdf (men size)

Download free olson mask pattern pdf (teens and women size)

Download free olson mask pattern pdf (child size) – (7-12 years old)

Download free olson mask pattern pdf (small child size) – (3-6 years old)

Prepare Material and tools for DIY Face Mask

  1. Main fabric (front of mask) x 2 (Better choose fabrics that waterproof or water repellent)
  2. Lining fabric (back of mask) x 2 (Better choose fabrics that comfortable to breath, such as cotton fabric)
  3. Elastic bands x 2 (Approximate length – adult, teens & women: 165mm / child: 115mm / small child: 100mm, recommend measuring the size by yourself as face size are different for everyone)
  4. Sewing machine (if you don’t have this, just prepare sewing thread and needles)
  5. Few sewing pins/sewing needles (for fixing fabric when sewing)
  6. Scissor
  7. Pen/pencils (optional – for beginners)

RELATED POST: What’s the best material for a DIY cloth face mask for COVID-19?

Download Olson Mask Sewing Instruction PDF

PDF: Olson Face Mask with Filter Pocket Sewing Instruction

Olson face mask with filter pocket sewing instruction

Olson face mask with filter pocket step-by-step sewing instruction

3d olson face mask with filter pocket step-by-step guide

Olson face mask with filter pocket step-by-step sewing instruction




Simple step-by-step sewing guide: Olson Face Mask with Filter Pocket

Step 1: Cut the pattern of your size on the fabric

Cut two pcs main fabrics, two pcs lining fabrics base on mask pattern. For precisely cut the pattern of your size, you can use sewing pins/needles to fix paper pattern onto the fabric, then follow the paper patterns to cut the fabric.

blank

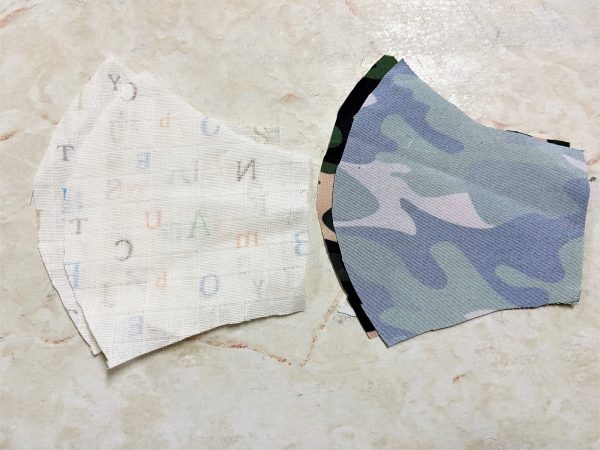

Left: lining fabrics, Right: main fabrics

Step 2: Sew the main fabrics and lining fabrics

After prepare all materials, we start sewing. We will sew two parts of the fabrics, the curved edge and straight edge.

Curved edge

Main Fabrics: Turn the right side of both main fabrics facing each other, wrong side will face to you, we are going to sew the wrong side of fabrics. Follow the curved edge and sew with 5mm seam allowance. (In case you don’t have sewing pins/needles, you can use pen to draw a line on seam allowance for help.)

Lining Fabric: Just do the same with main fabrics.

blank

Turn the right side of both main fabrics facing each other. Lining fabrics are same.

blank

You can use pen to draw a line on seam allowance or use sewing pins if you are beginner.

blank

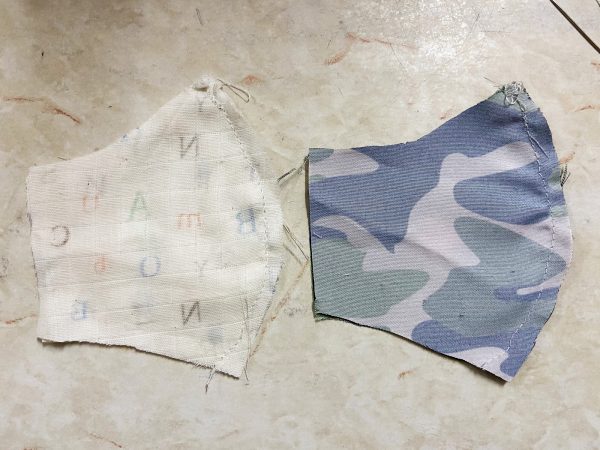

Follow the curve and sew with 5mm seam allowance

Straight edge

At this step, we will sew the straight edge of lining fabric only, main fabric will be sewed at later step.

Lining Fabric: Double fold the raw edges. Each fold edge is 10mm (20mm in total) and sew the edge. Do it for left and right edge.

blank

Double fold the raw edges. Each fold edge is 10mm.

blank

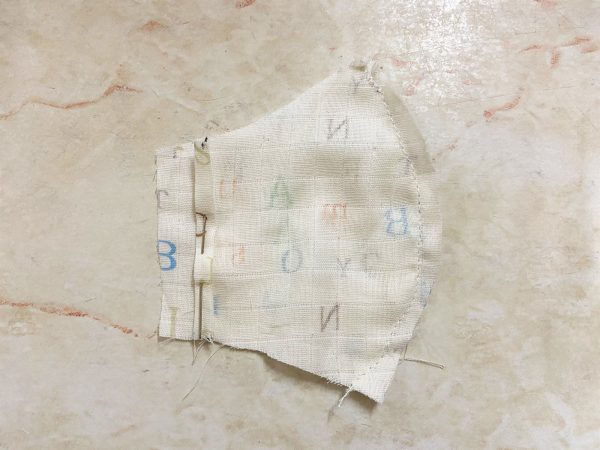

Do it for left and right edge

blank

After sewing both sides

Step 3:Merge main and lining fabrics

At this step, we will merge two fabrics by sewing the top and bottom of both fabrics.

Place lining fabric on the main fabric, with right side facing each other, we will sew the top and bottom of wrong side.

Make sure that the curved edge of each fabric is at the same point and use sewing pins to fix the fabrics. Then starts to sew the both top and bottom of the fabrics with 5mm seam allowance. Then turn the right side of face mask out, we go to the next step.

blank

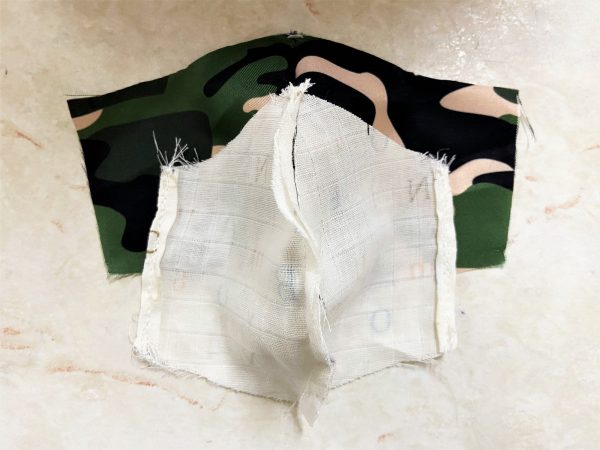

Place lining fabric on the main fabric

blank

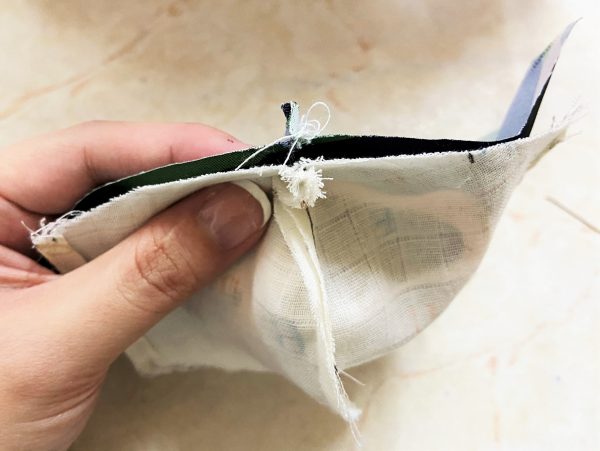

Make sure that the curved edge of each fabric is at the same point

blank

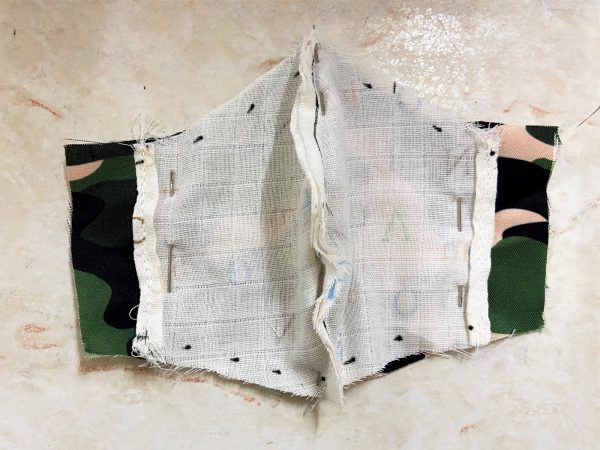

Use sewing pins to fix the fabrics, sew the both top and bottom of the fabrics with 5mm seam allowance

blank

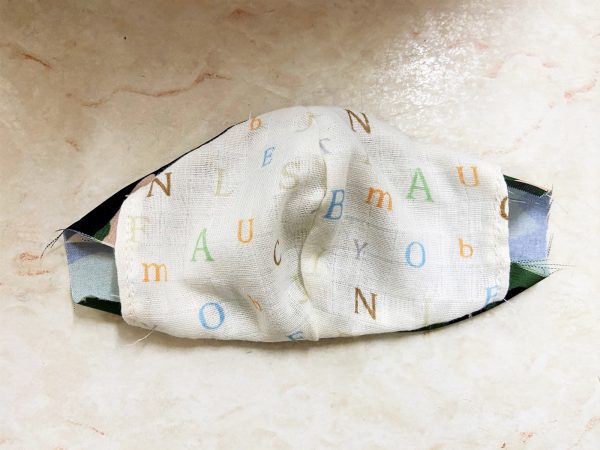

Turn the right side of face mask out

Step 4: Sew the edge of top and bottom on right side of mask

At this step, the right side of main fabric faces to you, we are going to sew the edge of top and bottom to keep the shape well. Remember to fold the end of edge with 5mm seam allowance before sewing.

blank

Remember to fold the end of edge with 5mm seam allowance before sewing

blank

Right side of main fabric faces to you, sew the edge of top and bottom once

Step 5: Add elastic bands at straight side of main fabric

At this step, place the top of elastic bands at the top of straight side, bottom of elastic bands to bottom of straight side, and sew it to fix the elastic bands. Then, double fold the edge forward the lining fabric, then sew the edge from top to end.

blank

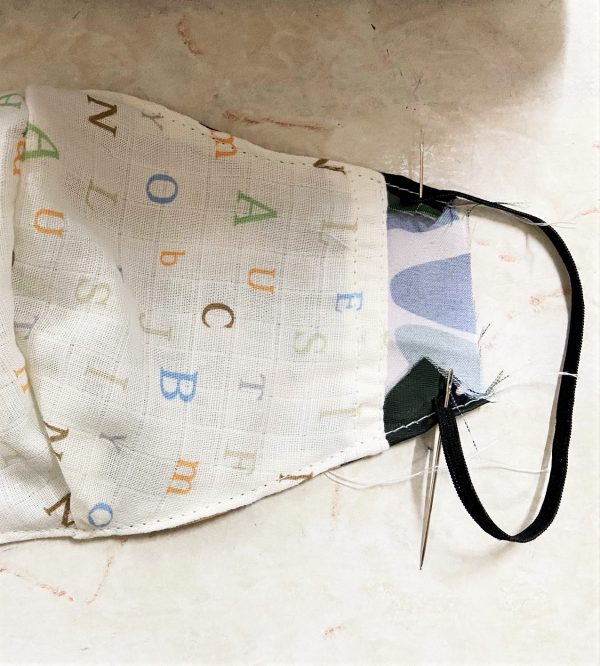

Place the top of elastic bands at the top of straight side,bottom of elastic bands to bottom of straight side, fix the elastic bands.

blank

Double fold the edge forward the lining fabric and sew the edge from top to end.

blank

Done!


Congratulations! Your own mask is done! Also, you can insert face mask filters  (for adult / for kids) for better protection.


You can also visit our video tutorialDIY Your Reusable Face Mask with Filter Pocket in 8 Minutes
